A liquid fertilizer formula can look straightforward on paper yet become unstable, slow to make, or difficult to fill when the equipment is selected by tank size alone. The better question is whether the line can dissolve, react, circulate, filter, and package the exact material you intend to sell. That match protects batch consistency before it becomes a customer complaint.
Equipment selection starts with how the formula behaves from charging through filling. A clear, fully dissolved product, a suspension carrying fine solids, and a reactive or viscous organic blend can all be called liquid fertilizer, but they put very different demands on mixing, pumping, filtration, and storage.
| Formula behavior | Equipment emphasis | Reason for the choice |
| Clear solution | Mixing or reaction tank, controlled charging, transfer pump, final filter | The product must dissolve completely and stay clear through storage and filling. |
| Suspension or gel | Higher-shear mixing, continuous recirculation, wide-passage transfer path | Fine solids need enough motion to remain evenly distributed rather than settling. |
| Reactive or viscous blend | Reactor tank, temperature-capable arrangement where needed, compatible pumps and piping | Residence time, material compatibility, and flow resistance govern the process. |
A liquid fertilizer production line for a clear product needs a tank that supports the charging order, a predictable mixing period, and transfer without unnecessary hold-up. If the recipe includes solids that dissolve slowly or ingredients that need a reaction stage, a reactor tank and a controlled feed sequence matter more than simply adding a larger mixer.
Filtration belongs at the point where it protects both product appearance and the filling system. A formula that is intended to be a true solution should be checked for undissolved residue before it reaches storage or nozzles. A small formula trial at the intended concentration is a practical way to expose cloudiness, sediment, or incompatible additions before equipment is specified.
Compatibility needs to be proved at the intended concentration, not assumed from the ingredient names. Temperature, water quality, charging order, and the time between blending and filling can change what the batch does. Recording those conditions during a pilot batch gives the equipment designer a usable brief: whether the process needs controlled heating, extra mixing time, an intermediate hold tank, or a more conservative filtration point.
Suspension products change the decision because a stable-looking tank is not proof that the material will remain uniform during transfer and filling. Potash-rich or particle-bearing products can need agitation or recirculation all the way to the filling point, so the tank, pump, pipe diameter, valves, and filler must be considered as one moving system.
This is where a generic liquid fertilizer machine can be the wrong starting point. The useful specification is the formula’s solids behavior, viscosity, required batch size, and packaging rhythm, because those facts decide whether a normal mixer, a higher-shear unit, or a recirculating arrangement is appropriate.
A water soluble liquid fertilizer needs a connected process, not a collection of machines purchased in isolation. Start with the formula, raw-material form, target concentration, batch volume, packaging size, and desired hourly output. Then map those facts through grinding when needed, mixing or reaction, filtration, industrial or gear-pump transfer, finished-product storage, and automatic capping and filling.
For a trader or a business entering manufacturing, the early design work should reduce uncertainty rather than overbuild the factory. SAFI Machinery can configure liquid fertilizer equipment around the product path, including mixing machines, reactor tanks, filters, pumps, pipelines, storage tanks, and filling equipment. That makes the design discussion useful only after the formula and operating goal are clear.
The same discipline applies to liquid fertilizers custom manufacturing. A line built for a clear, low-viscosity blend should not be presented as interchangeable with one intended for a particle-bearing suspension or a reactive organic product. The formula brief is the bridge between commercial demand and equipment that can repeat the batch.

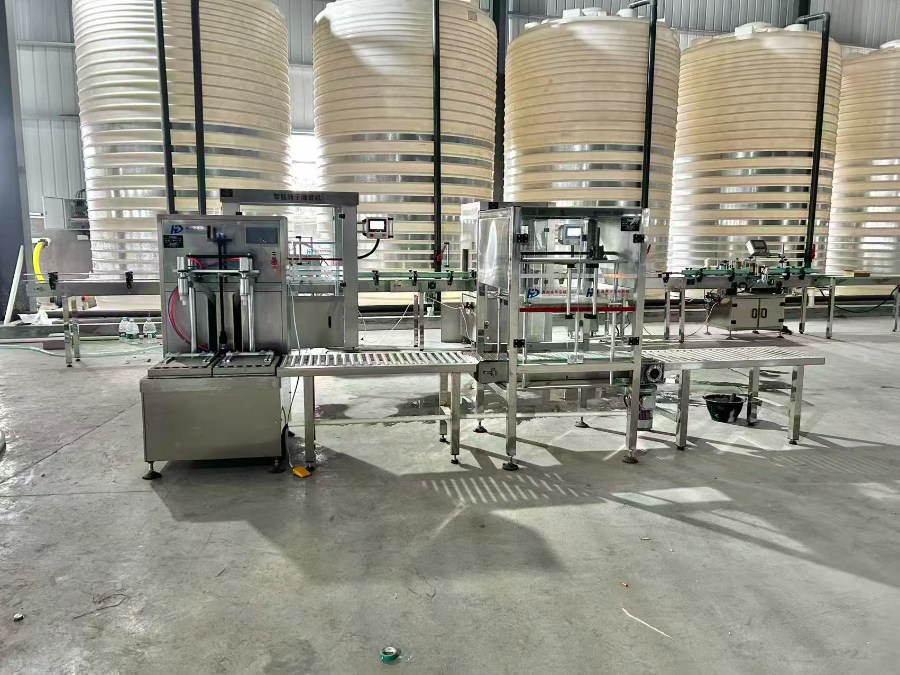

Packaging closes the loop on the equipment decision. The filler should suit the container size, the product’s flow behavior, and the required production rhythm; the storage tank and transfer line must keep the material ready for that filler. Reviewing this handoff early prevents a common mismatch in which a well-mixed batch reaches the packaging point too slowly, changes character while waiting, or demands frequent manual intervention.
The right liquid fertilizer equipment is the equipment that matches the formula’s physical behavior and the plant’s real handoffs. Clear products place the emphasis on dissolution and filtration; suspensions demand sustained motion; reactive or viscous blends call for the right tank, transfer, and material choices. A short technical brief prepared before quotation will lead to a more reliable liquid soluble fertilizer process than selecting from tank volume alone.
If you are planning a new liquid range, share your formula and packaging target with our team so the equipment discussion can start with the batch you need to make.
They can share parts of a process, but suspensions usually need more mixing or recirculation to keep solids evenly distributed during transfer and filling.
A reactor tank is appropriate when the formula needs a controlled reaction, temperature management, or defined residence time rather than simple blending.
Filtration removes undissolved residue or unwanted particles that can affect product appearance and interfere with pumps, valves, or filling nozzles.
Provide the formula type, raw-material form, target concentration, viscosity or solids behavior, batch size, package size, and desired output.
Yes, when the process is designed around formula compatibility, clean-out needs, transfer paths, and the switching rhythm between batches.
