Product Description

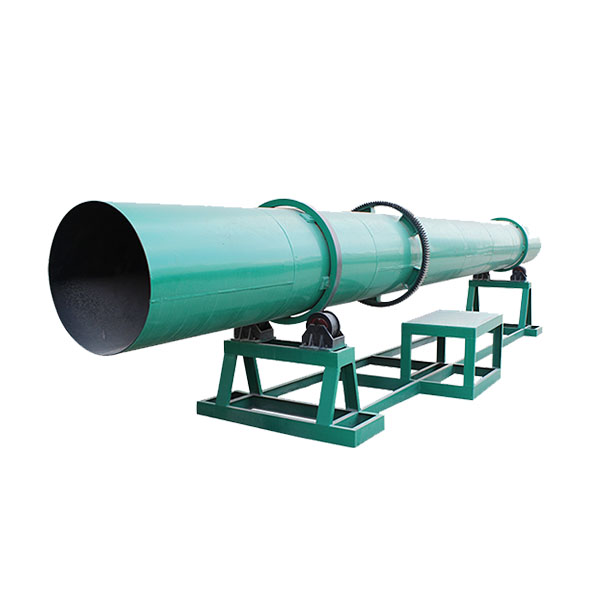

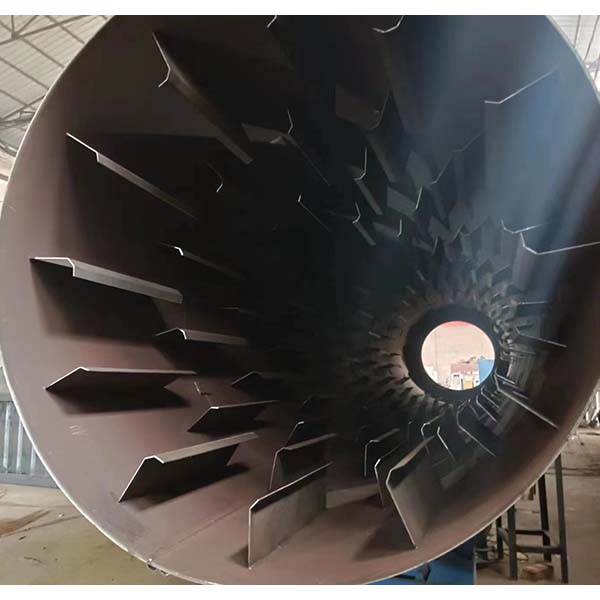

Fertilizer cooling machine which is also called rotary drum cooler, is an ideal cooling equipment for fertilizer processing, both in compound fertilizer and organic fertilizer production. lt is used to reduce the temperature from the dryer and can go to the next process for packing directly. lt consists of a cylinder, spiral plate, lifting board, hopper, and cooling pipe system. The rotary drum cooling machine can combine with the rotary dryer to remove the dust and clean the exhaust together, which can improve the cooling efficiency, reduce labor intensity, and further remove moisture from the fertilizer. Generally, the inlet temperature of materials is 40-60 degrees while the outlet temperature is less than 30 degrees Besides, the fertilizer cooling machine manufactured by us can also be used to cool other powder and granules materials.
Technical Data
| Model | Drum Dia.(mm) | DrumAngle | Power（kw） | Capacity(tph) | RPM | Inlet temp.(℃) | Outlet temp.(℃) |
| SFL08800 | 800 | 2-5 | 4 | 0.5-1 | 8 | 40-60 | ≤30 |
| SFL10100 | 1000 | 2-5 | 5.5 | 1-2 | 7 | 40-60 | ≤30 |
| SFL12120 | 1200 | 2-5 | 7.5 | 2-2.5 | 7 | 40-60 | ≤30 |
| SFL15150 | 1500 | 2-5 | 15 | 3-4 | 5.0 | 40-60 | ≤30 |
| SFL18180 | 1800 | 2-5 | 18.5 | 4-6 | 3.9 | 40-60 | ≤30 |
| SFL20200 | 2000 | 2-5 | 22 | 6-8 | 3.9 | 40-60 | ≤30 |
| SFL22220 | 2200 | 2-5 | 37 | 8-12 | 3.2 | 40-60 | ≤30 |
| SFL24240 | 2200 | 2-5 | 45 | 12-15 | 3.0 | 40-60 | ≤30 |
